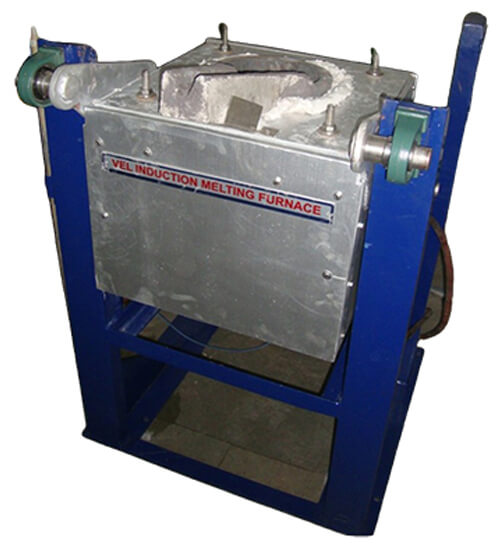

VEL MeltPro Series

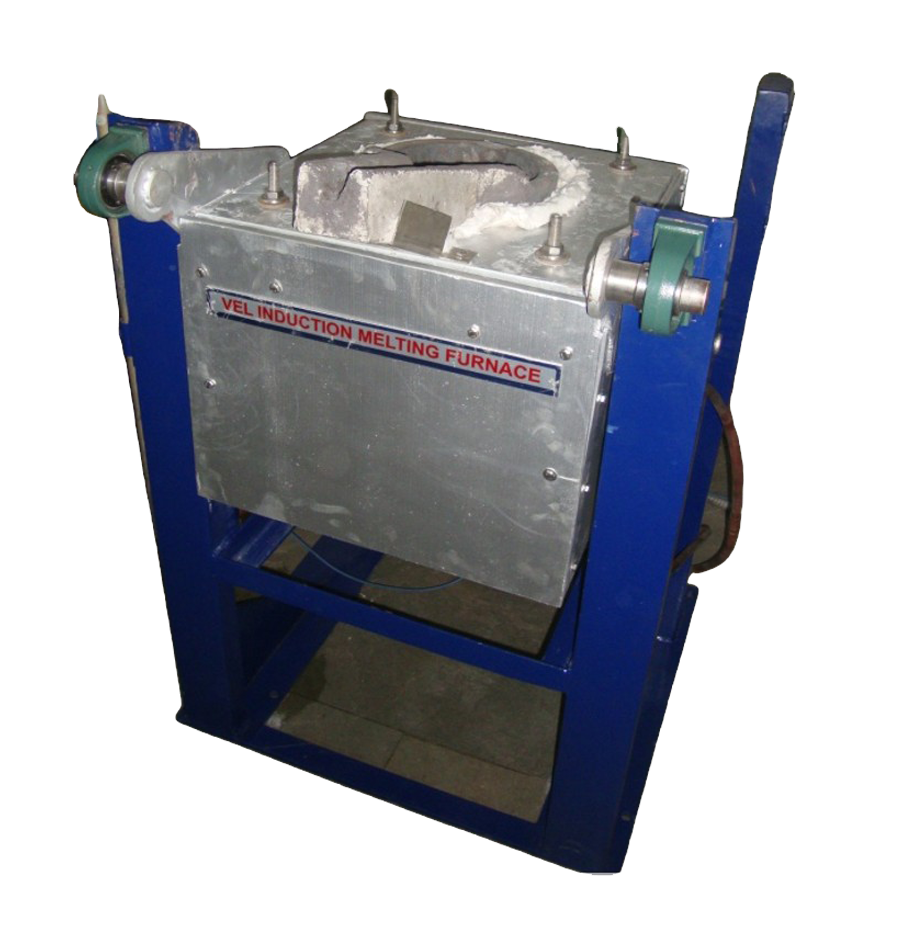

VEL MeltPro Series Induction Melting Furnaces are designed for efficient and reliable melting of ferrous, non-ferrous and precious metals across various industrial applications. These furnaces are widely used in automobile castings, DI pipe foundries, railway components, manganese steel castings, roll manufacturing, grinding media production and alloy melting applications.
Standard Features
- Power regulation (10 – 100%)
- Advanced software driven solid state converters.
- Temperature monitoring with a thermocouple probe or optional IR pyrometer.
- Fast acting electronic interlocks for safe and reliable operation.
- Automatic / Manual tilting control.
- Custom models with different capacities can be designed.
VEL MeltPro serries consists of ►Converter ► Inverter ► Control, Protection & Interlocks► Output Transformer ► Coil / Furnace► Water Cooling & Circulating System.
| Type | VEL/IMF25 | VEL/IMF50 | VEL/IMF75 | VEL/IMF100 | VEL/IMF200 | VEL/IMF300 |
| Incoming Voltage | 415V, 3phase, 50Hz, 4 wire | |||||
| Input Feeder Rating | 63A | 125A | 200A | 250A | 500A | 800A |
| Max.Output Power
(Variable 10-100%) |
25kW | 50kW | 75kW | 100kW | 200kW | 300kW |
| Output Frequency | 10-20 kHz | 5-20kHz | 3-10kHz | 3-6kHz | 1-3kHz | 0.5-1kHz |
| Furnace Capacity
(Based on Charge Material) |
5-25 kg | 25-50 kg | 50-75 kg | 50-100 kg | 75-150 kg | 100-200kg |
| Charge Material | Carbon Steel, Stainless Steel, Aluminum, Copper, Gold, Silver, etc | |||||
| Pouring | Manual | Manual/Auto | Auto | Auto | Auto | Auto |
Download Catalogue
