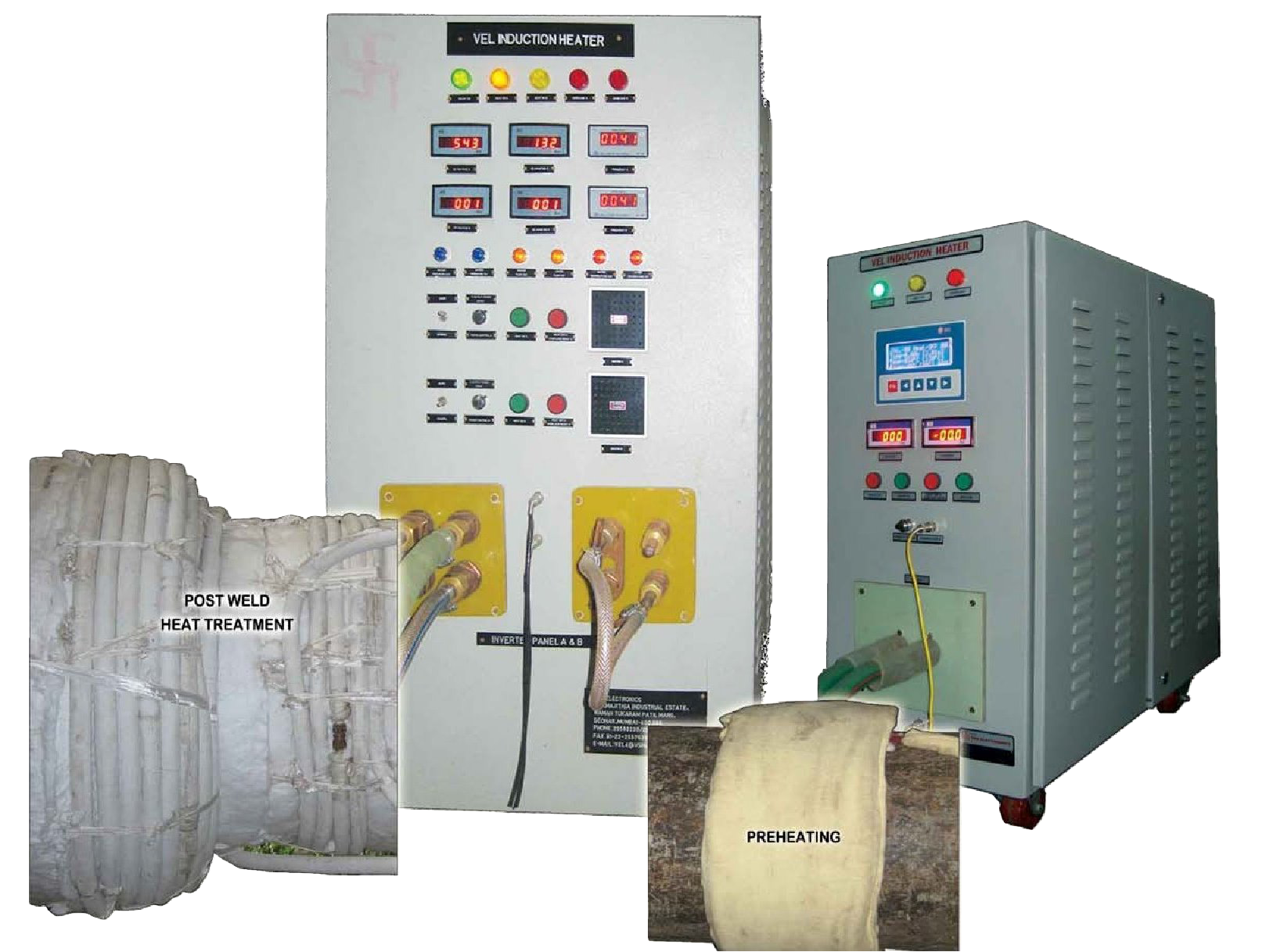

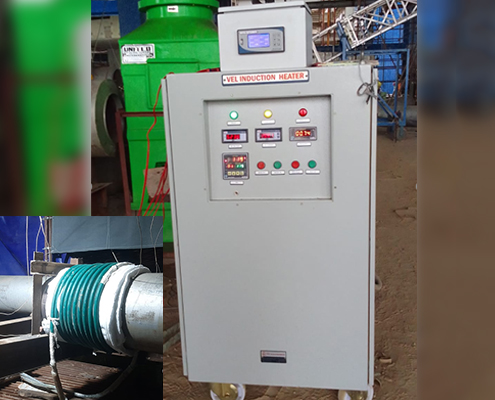

VEL PH/PW Series
The VEL PH/PW Series provides a highly versatile solution for preheating, stress relieving, hydrogen bake-out, and post-weld heat treatment (PWHT) across a wide range of pipe diameters and flat plate applications. Engineered for precision and reliability, the system ensures uniform heat distribution, helping improve weld quality and reduce residual stresses.
Designed for demanding industrial environments, the PH/PW Series offers fast setup, accurate temperature control, and energy-efficient operation. Its flexible heating configurations make it suitable for applications in oil & gas, power generation, petrochemicals, heavy engineering, shipbuilding, and fabrication industries.
Standard Features
- Designed for continuous heating operation
- Equipped with rugged heavy duty components to tolerate harsh working conditions
- Very Compact and portable (could be easily mounted on any trailer / trolley & moved by forklift / crane)
- All safety trips / interlocks incorporated including sensing the temperature of critical power components of the equipment
- Efficiency of the power source is better than 95%
- Low Voltage design makes it very safe to use at site
- Inductors are specifically designed keeping in mind ease of operation
- Thermal Profile Controller, Data Logger & Paper Chart Temperature Recorder is integrated as required.
- Provides uniform rapid heating in plate and pipe applications
- Reduces set-up time and time-to temperature
Standard Features
- Designed for continuous heating operation
- Equipped with rugged heavy duty components to tolerate harsh working conditions
- Very Compact and portable (could be easily mounted on any trailer / trolley & moved by forklift / crane)
- All safety trips / interlocks incorporated including sensing the temperature of critical power components of the equipment
- Efficiency of the power source is better than 95%
- Low Voltage design makes it very safe to use at site
- Inductors are specifically designed keeping in mind ease of operation
- Thermal Profile Controller, Data Logger & Paper Chart Temperature Recorder is integrated as required.
- Provides uniform rapid heating in plate and pipe applications
- Reduces set-up time and time-to temperature
| TYPE | VEL/PH20 | VEL/PH40 | VEL/PW50 | VEL/PW100 | VEL/PW200 |
| Input Voltage | 220V, 1ɸ,50Hz | 415V, 3ɸ,50Hz | |||
| Output Power | 20kW | 40kW | 50kW | 100kW | 200kW |
| Temperature | 25-250°C | 25-1000°C | |||
| Application | Pre-Heating | Pre-Heating & Post Weld Heat Treatment | |||
| Pipe Dimensions | Ø150-500 x
3-16thick x 50-150mm bandwidth |
Ø400-1200 x
3-25 thick x 100-300 mm bandwidth |
Ø400-1200 x
3-25thick x 100-300mm bandwidth |
Ø400-1200 x
3-150thick x 100-400mm bandwidth |
Ø400-1800 x
3-300 thick x 150-600mm bandwidth |
| Cooling Coil | Air | Water | |||
| Heating Rate | —————————– 1-50⁰C/min—————————– | ||||
Note: Any Intermittent Power Shall Be Provided as Per Customer Requirement. We Also Provide Customised Solution for Specific Applications.
Technical Specification
| TYPE | VEL/PH20 | VEL/PH40 | VEL/PW50 | VEL/PW100 | VEL/PW200 |
| Input Voltage | 220V, 1ɸ,50Hz | 415V, 3ɸ,50Hz | |||
| Output Power | 20kW | 40kW | 50kW | 100kW | 200kW |
| Temperature | 25-250°C | 25-1000°C | |||
| Application | Pre-Heating | Pre-Heating & Post Weld Heat Treatment | |||
| Pipe Dimensions | Ø150-500 x
3-16thick x 50-150mm bandwidth |
Ø400-1200 x
3-25 thick x 100-300 mm bandwidth |
Ø400-1200 x
3-25thick x 100-300mm bandwidth |
Ø400-1200 x
3-150thick x 100-400mm bandwidth |
Ø400-1800 x
3-300 thick x 150-600mm bandwidth |
| Cooling Coil | Air | Water | |||
| Heating Rate | —————————– 1-50⁰C/min—————————– | ||||
Note: Any Intermittent Power Shall Be Provided as Per Customer Requirement. We Also Provide Customised Solution for Specific Applications.
