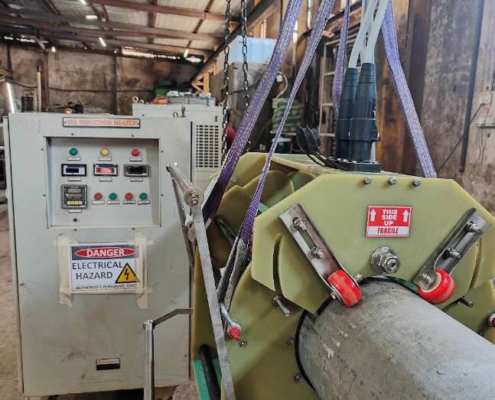

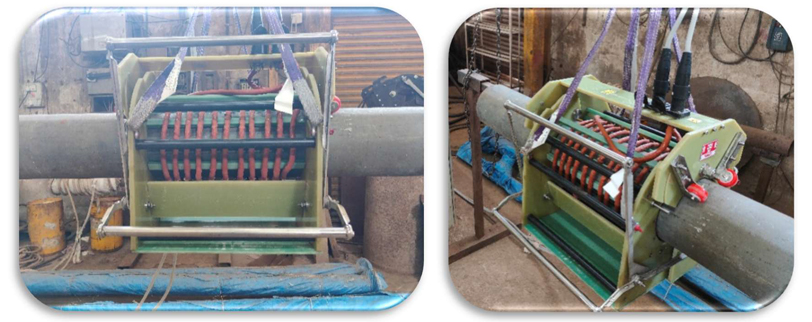

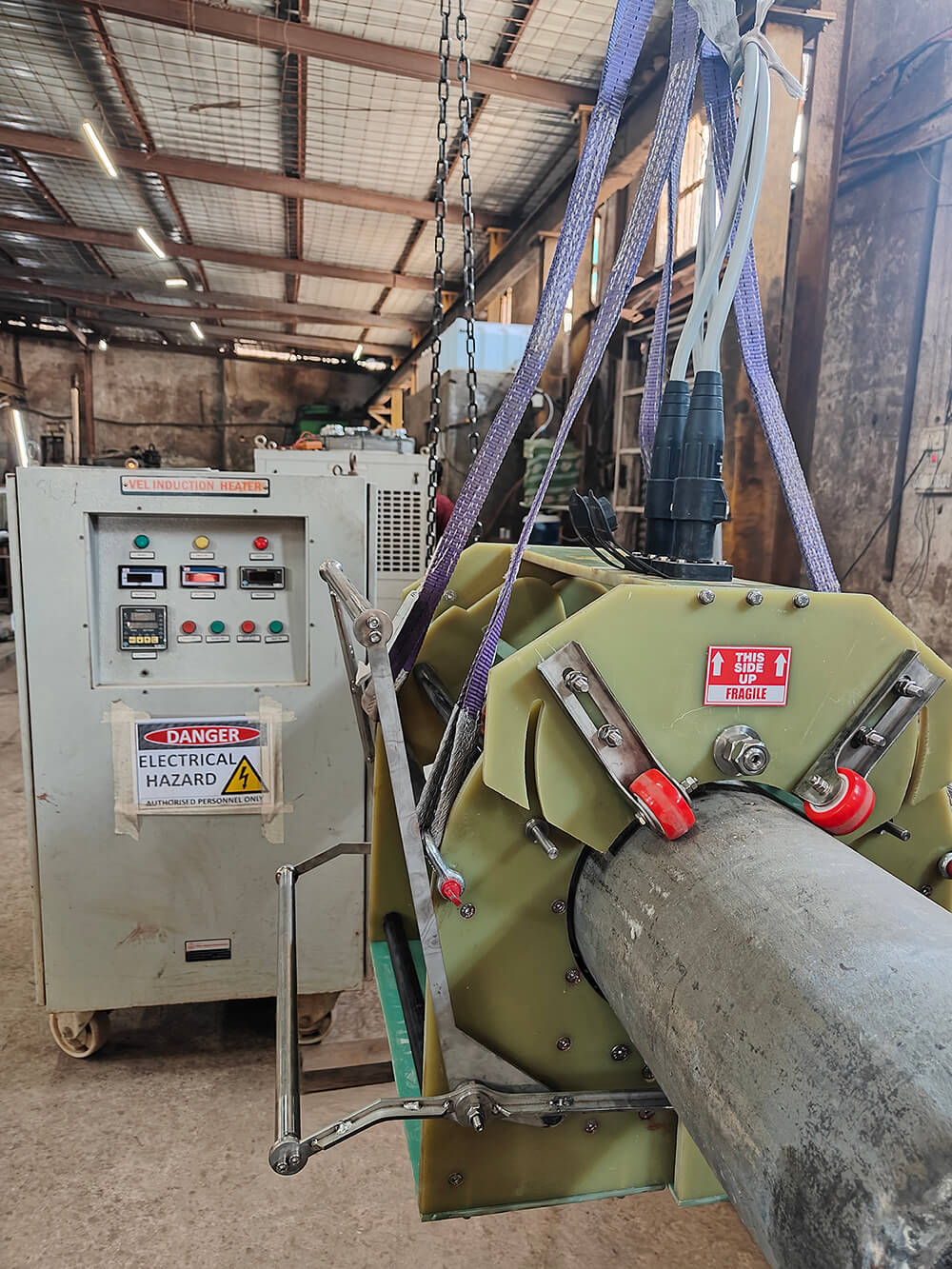

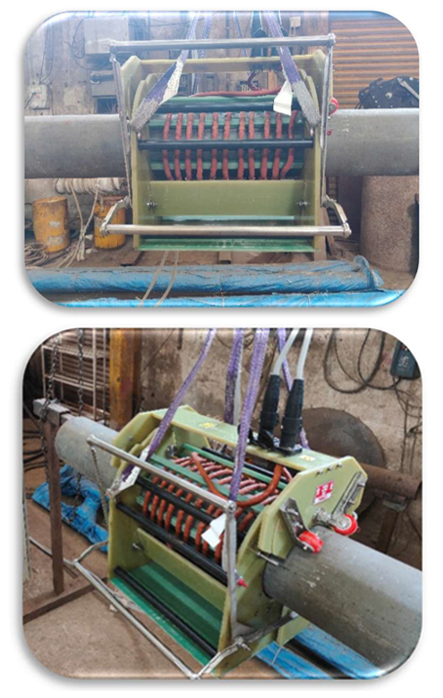

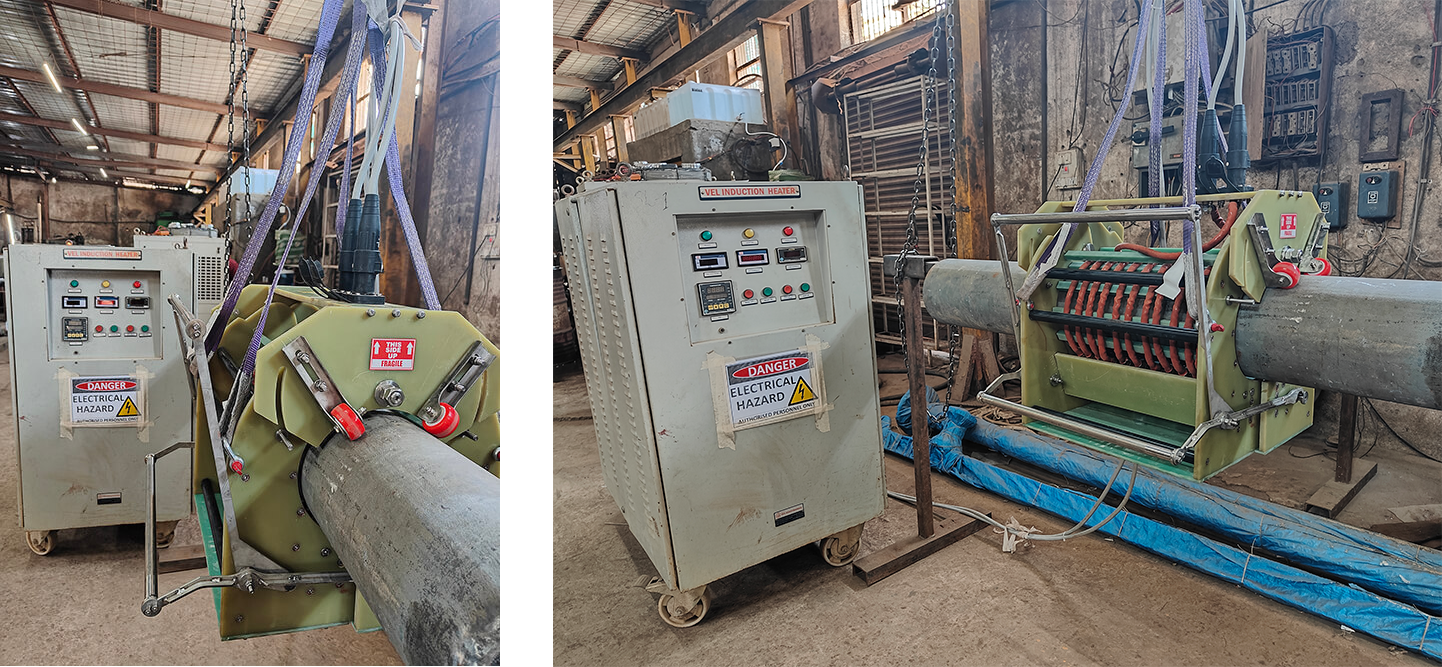

Induction Heating Clamp Coils for Coating Applications:

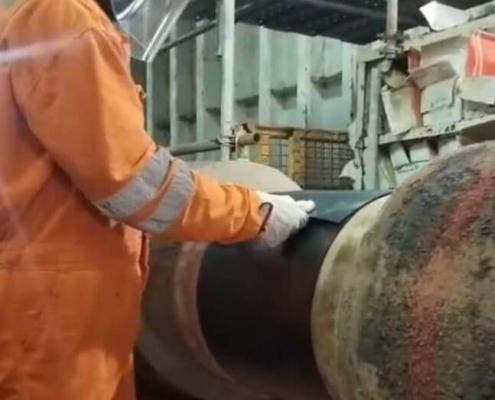

Induction heating clamp coils are specifically designed for coating heating processes, ensuring optimal surface preparation for corrosion protection methods such as Heat-Shrinkable Sleeves (HSS), polyethylene (PE) or polypropylene (PP) coatings, and Fusion Bonded Epoxy (FBE).
Engineered to meet project-specific technical requirements, these coils deliver uniform and consistent heating across the entire surface, facilitating the seamless application of anticorrosive coatings.
Key Features & Design
Robust & Insulated Structure:
The main frame is constructed from high class insulating material, providing the necessary strength for field operations while ensuring complete electrical insulation for operator safety.
Durable Stainless Steel Components:
The opening and closing mechanism, levers, shafts, bolts, and other metallic parts are made of stainless steel, ensuring durability and resistance to harsh environments.
Optimized Thermal Performance:
Each coil is designed using thermodynamic simulations to analyse the heat distribution on the joint section and track the progressive heat dissipation after the heating cycle ends.
These induction heating clamp coils are engineered for efficiency, safety, and durability, making them ideal for demanding field applications.
| General Spec | |
| Input Power (from VEL Induction Heater) | 50/100 kW |
| Frequency | 2-20 kHz |
| Application | HSS – FBE – PWHT |
| Operating Temperature | 15°C – 200°C |
| Structure | High Insulating material |
| Turns & Contact | Copper with high insulating sleeve |
| Cooling System | Air |
| Safety Interlock | A limit switch is used to prevent the machine from switching ON when the clamp is in the open condition. |

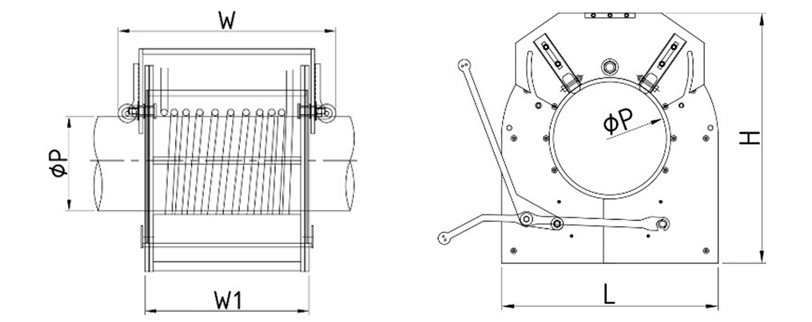

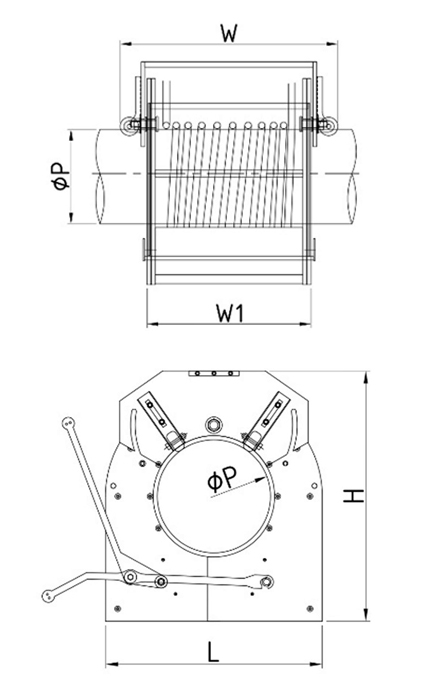

| Model No. | OP (in inches) | L (in mm) | H (in mm) | W (in mm) |
| VEL/ICC4 | 4 | 364 | 430 | 680 |
| VEL/ICC6 | 6 | 418 | 490 | 680 |
| VEL/ICC8 | 8 | 470 | 545 | 680 |
| VEL/ICC10 | 10 | 523 | 605 | 680 |
| VEL/ICC12 | 12 | 574 | 660 | 680 |
| VEL/ICC14 | 14 | 606 | 693 | 680 |
| VEL/ICC16 | 16 | 656 | 752 | 680 |
| VEL/ICC18 | 18 | 707 | 825 | 680 |
| VEL/ICC2o | 20 | 758 | 893 | 680 |
| VEL/ICC24 | 24 | 860 | 985 | 680 |
| VEL/ICC32 | 32 | 1065 | 1090 | 680 |
Note: We provide intermediate and higher sizes as well as per customer’s requirement.
